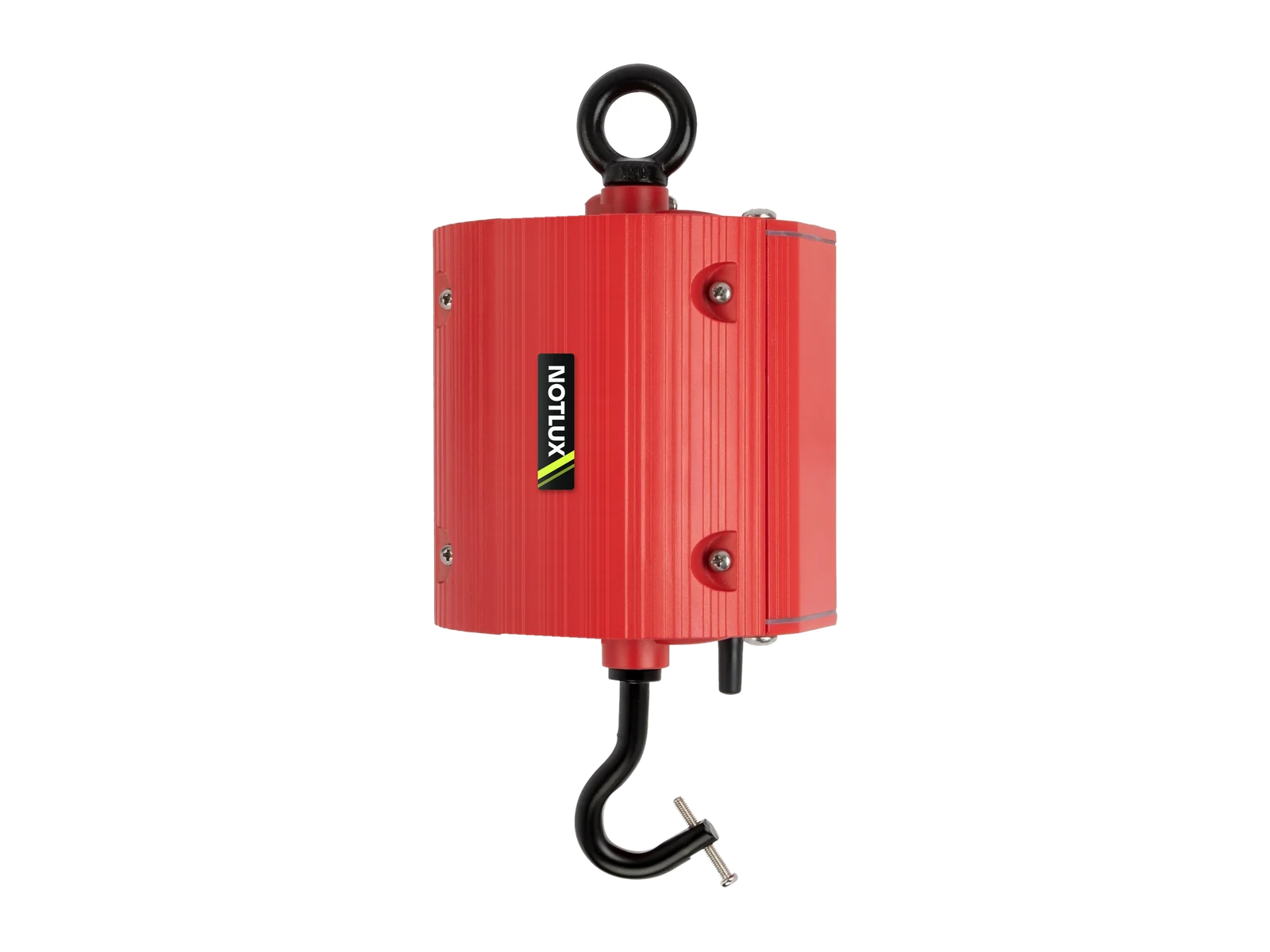

Emergency driver high-bay TRN-19-NST-90Min-BT
Series 19

Emergency driver high-bay. The high-bay stays. Emergency light comes with it.

TRN-19-NST-90Min-BT

The self-contained emergency driver connects directly to the LED high-bay and takes over emergency lighting during a power failure – with a constant 40 W for up to 90 minutes. No central battery, no fire-resistant wiring up to the hall ceiling.

Li-IonSelf-testBluetooth + App

Technical data

Emergency output40 W constant power
Suitable forLED high-bays up to 300 W
Emergency operation90 minutes
Dimensions (H × W × D)279 × 140 × 140 mm
Weight2,1 kg
Protection rating / classIP65 · I
Battery / supply14.8 V Li-ion 2,600 mAh, replaceable · 110–305 V AC
Ambient temperature0 °C – 55 °C
Request a projectDatasheet (PDF, German) 2047 KB

Images similar. Subject to technical changes.

Specification texts
Item 01.06Self-contained emergency driver with battery and self-test for LED high-bays up to 300 Wpcs

Supply, install and connect ready for operation as described below.

Emergency output40 W constant power
Suitable forLED high-bays up to 300 W
Emergency operation90 minutes
Dimensions (H × W × D)279 × 140 × 140 mm
Weight2,1 kg
Protection rating / classIP65 · I
Battery / supply14.8 V Li-ion 2,600 mAh, replaceable · 110–305 V AC
Ambient temperature0 °C – 55 °C
Battery lifeat least 5 years

Make: NOTLUX by TRiALED, type TRN-19-NST-90Min-BT or equivalent

Offered make / type:

QuantitypcsUnit price€Total€
All specification texts
The NOTLUX appiOS & AndroidThe NOTLUX appLuminaires test themselves and report faults instantly – the logbook writes itself.More about the app
Knowledge

Related knowledge

Technology7 min read

Upgrading Emergency Lighting: LED, Self-Test, Emergency Drivers

When is upgrading emergency lighting worth it? Warning signs, LED benefits, retrofits with emergency drivers, the project process and how to avoid downtime.

Read article
Planning8 min read

Self-contained vs central battery emergency lighting

Self-contained, group battery or central battery? A system comparison for emergency lighting: installation, cabling, space, maintenance and typical uses.

Read article
Planning10 min read

Emergency Lighting by Sector: From Offices to Car Parks

What emergency lighting do offices, retail, hotels, schools, healthcare, industry, car parks and assembly venues need? Requirements, specifics, common mistakes.

Read article

All products

Exit sign luminaire TRN-19-FLW01-3H-BT3D
Series 19 · TRN-19-FLW01-3H-BT

Exit sign luminaire

Discreet LED exit sign luminaire for ceiling, wall, side or pendant mounting – up to 30 m viewing distance.

30 m3 hIP20
View details
Escape route luminaire TRN-19-WGB01-3H-BT3D
Series 19 · TRN-19-WGB01-3H-BT

Escape route luminaire

Surface-mounted luminaire for escape routes, light output adjustable to 90° or 180°.

1.200 lm90° / 180°3 h
View details

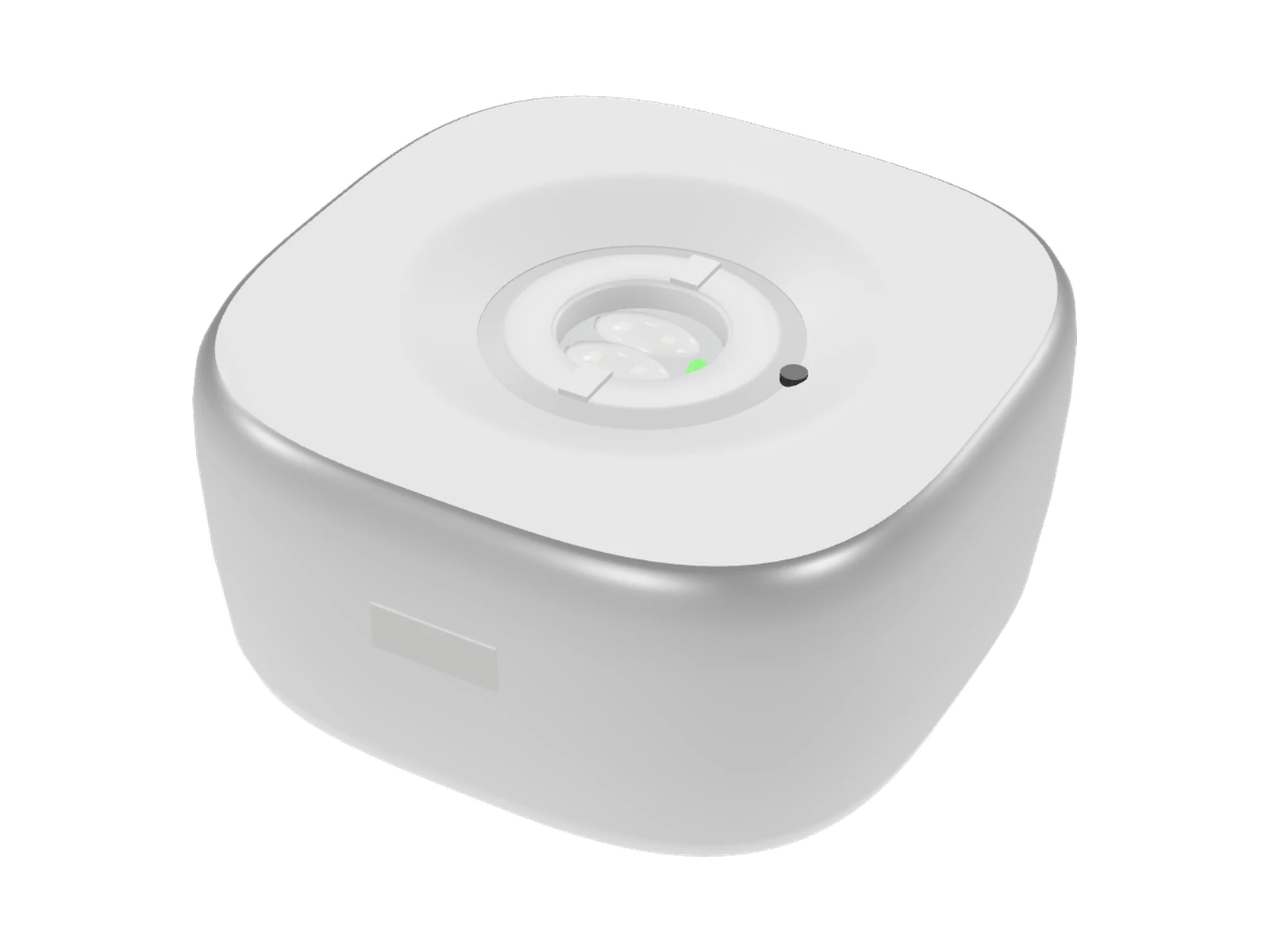

Compact emergency light TRN-19-LD02AB-LFP-BT-3H3D
Series 19 · TRN-19-LD02AB-LFP-BT-3H

Compact emergency light

Compact emergency light for escape routes, recessed or surface-mounted, with interchangeable optics.

700 lm135 × 55° / 140°3 h
View details

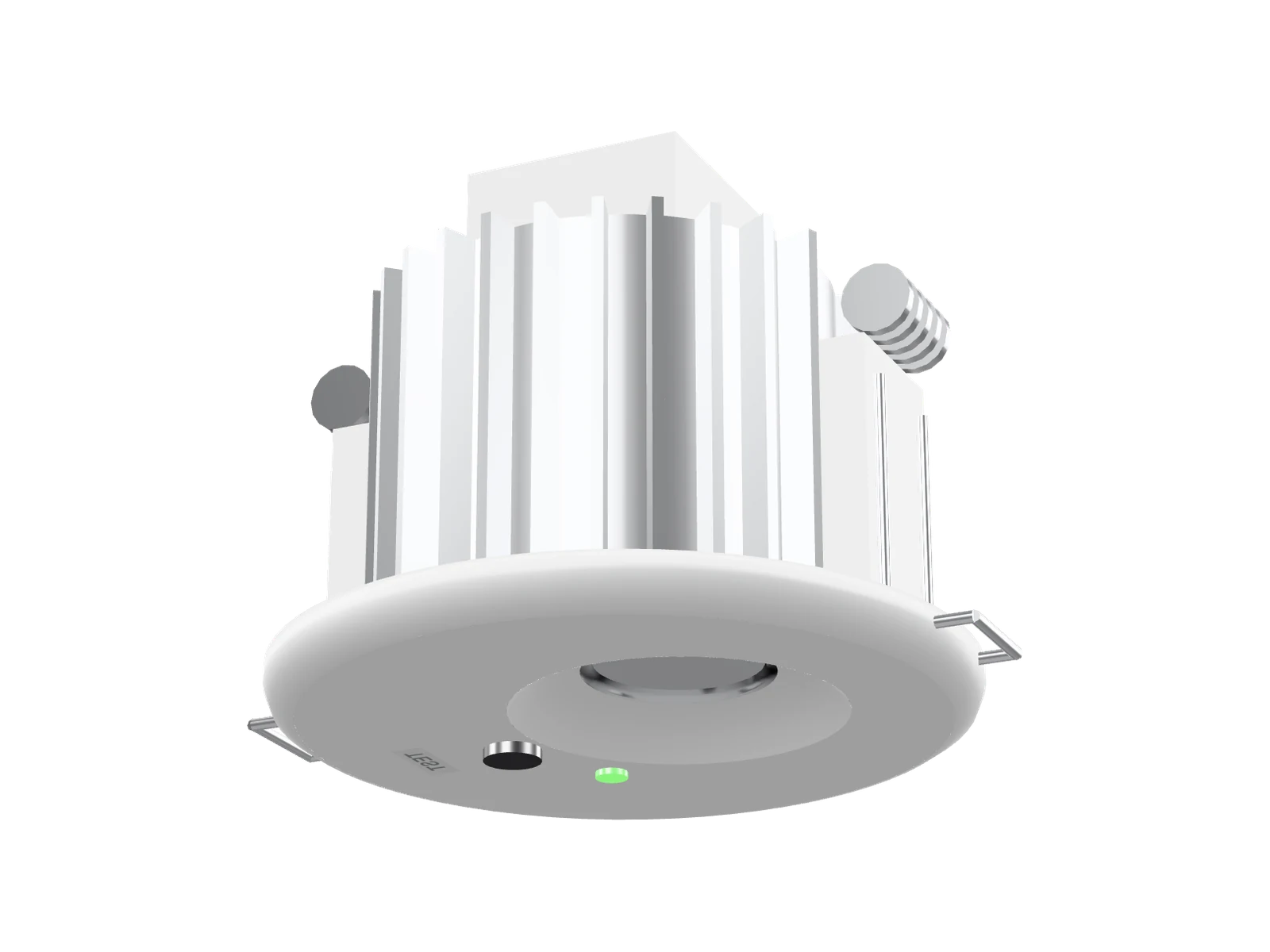

Recessed downlight TRN-19-LD01DL-LFP-BT-3H3D
