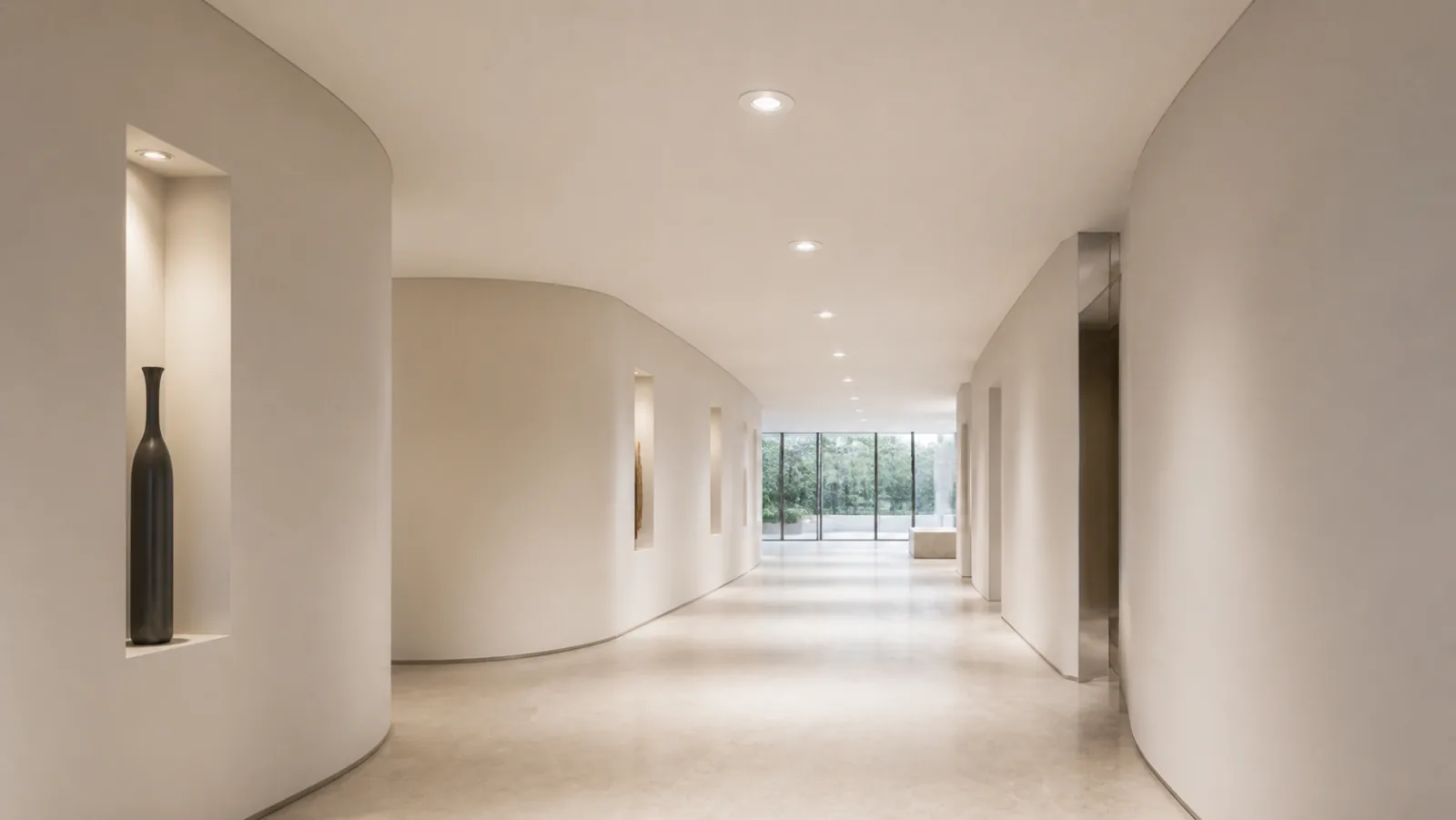

Recessed downlight. Barely visible. Fully there.
TRN-19-LD01DL-LFP-BT-3H

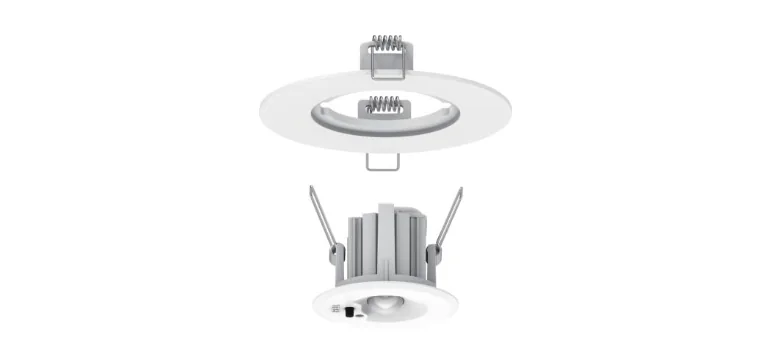

Compact emergency recessed luminaire for discreet integration into the ceiling. Interchangeable optics for escape routes and open areas, 500 lumens in emergency mode.
Technical data
| Luminous flux (emergency) | 500 lm |
|---|---|

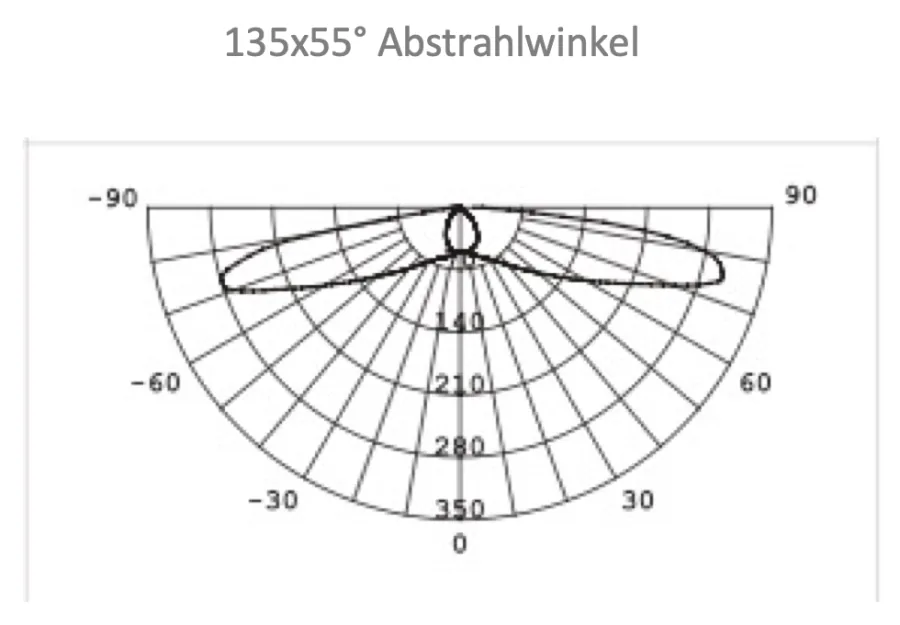

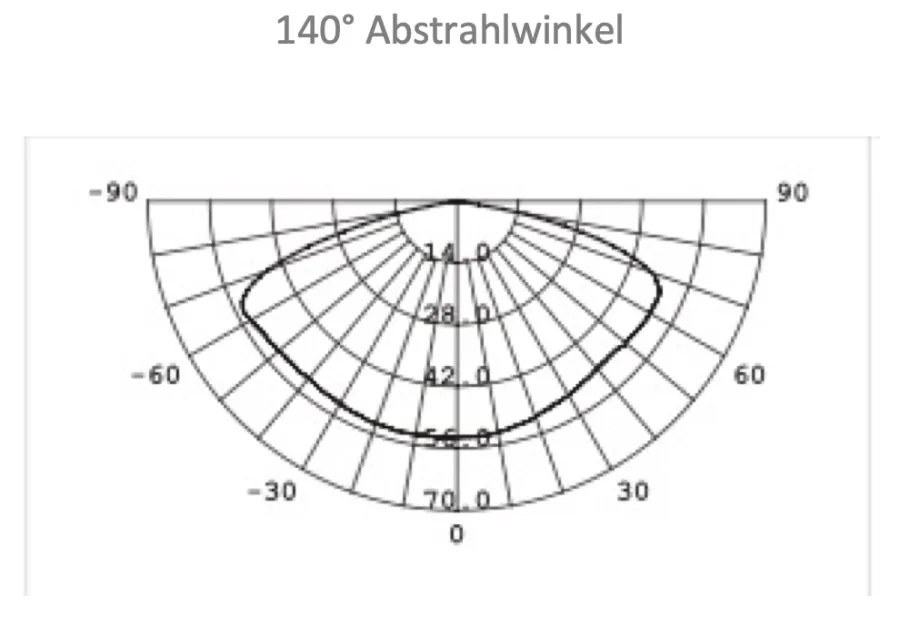

| Optics | 135 × 55° (escape route) or 140° (open area) |
| Emergency operation | up to 3 hours |
| Power / efficacy | 3 W · 167 lm/W |
| Colour temperature | 5.000 K |
| Dimensions (H × W × D) | 38 × 55 × 55 mm |
| Protection rating | IP20 |

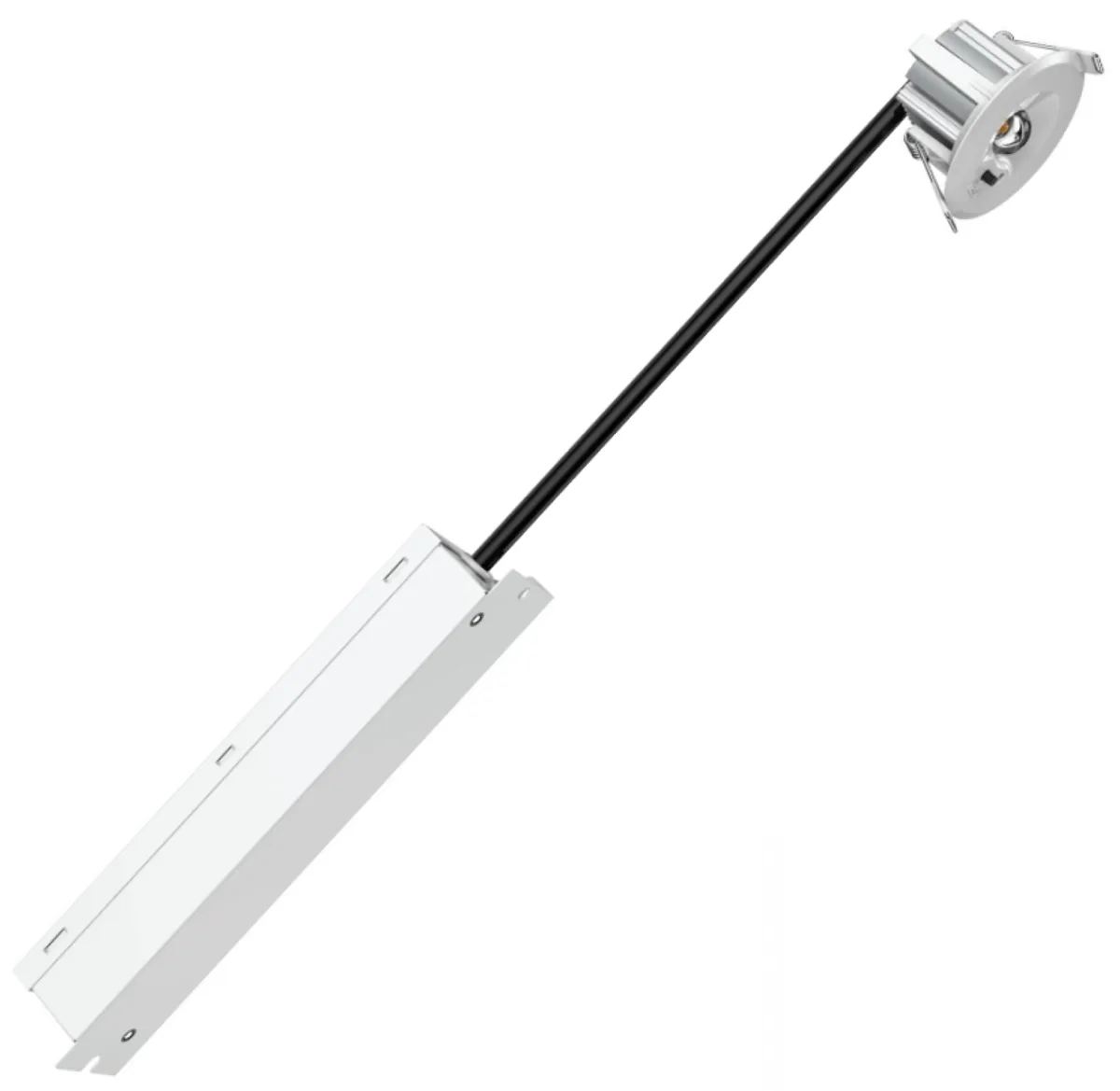

| Battery | LiFePO4, in a separate battery housing |
Images similar. Subject to technical changes.
Specification texts
LED safety luminaire as recessed downlight, self-contained Supply and install: Compact emergency recessed luminaire for discreet ceiling integration, 500 lm in emergency mode. - Luminous flux (emergency): 500 lm - Optics: 135 × 55° (escape route) or 140° (open area) - Emergency operation: up to 3 hours - Power / efficacy: 3 W · 167 lm/W - Colour temperature: 5.000 K - Dimensions (H × W × D): 38 × 55 × 55 mm - Protection rating: IP20 - Battery: LiFePO4, in a separate battery housing - LED lifetime 100,000 h (L85B05 at 35 °C) Make: NOTLUX by TRiALED, type TRN-19-LD01DL-LFP-BT-3H or equivalent Offered make / type: ............................ Quantity: ...... pcs Unit price: ............ € Total: ............ €
