Escape route luminaire. 1,200 lumens in emergency mode.
TRN-19-WGB01-3H-BT

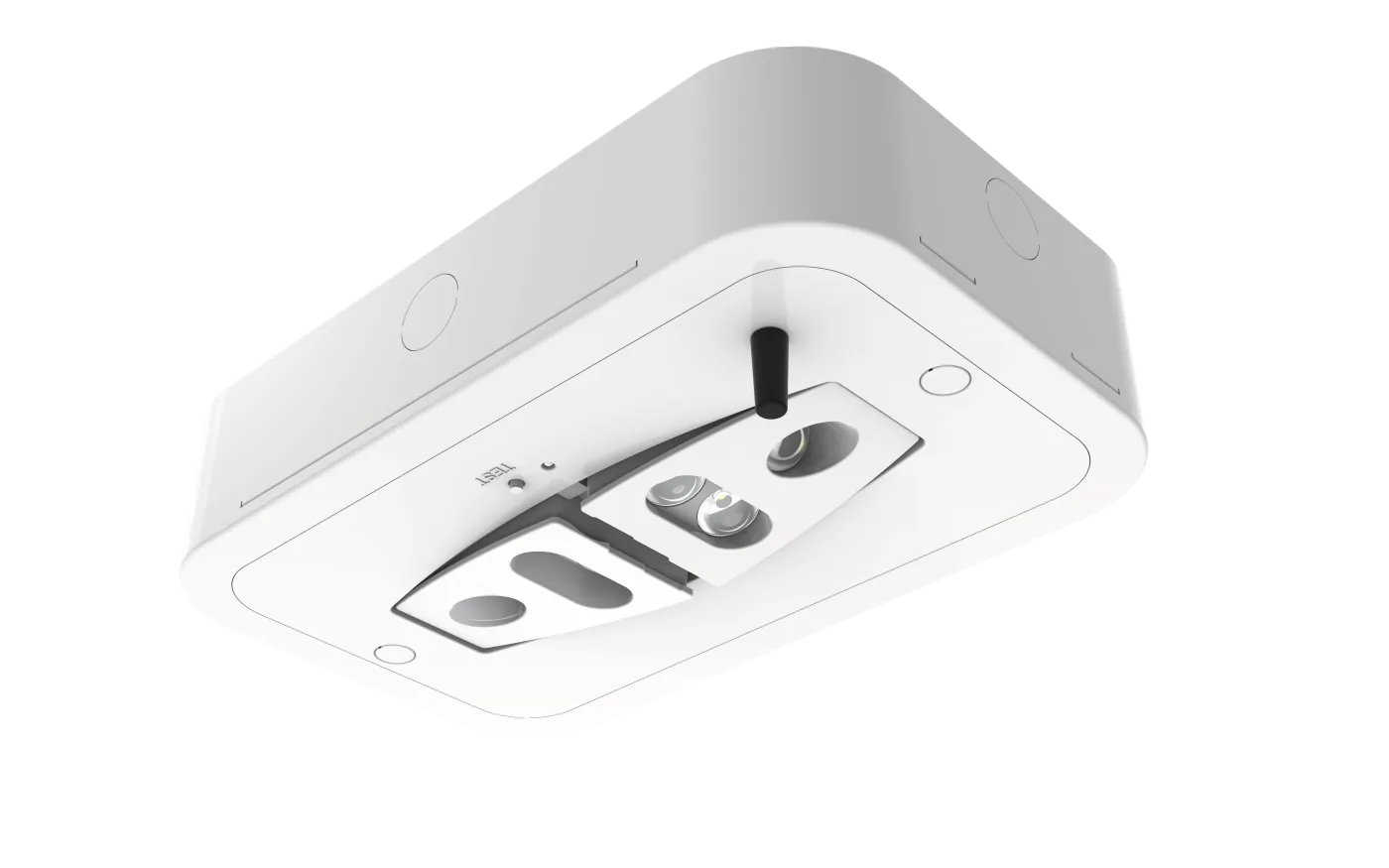

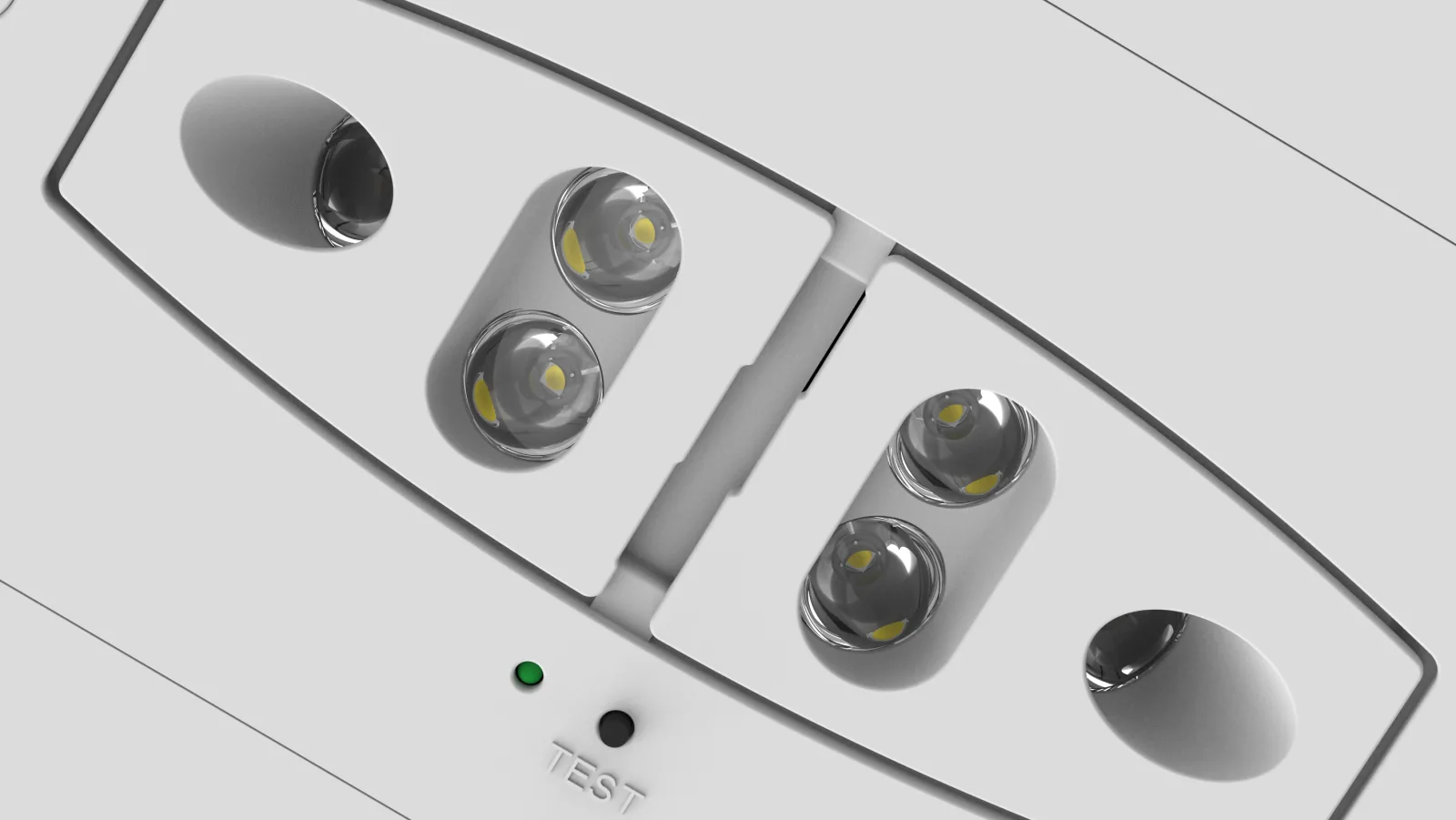

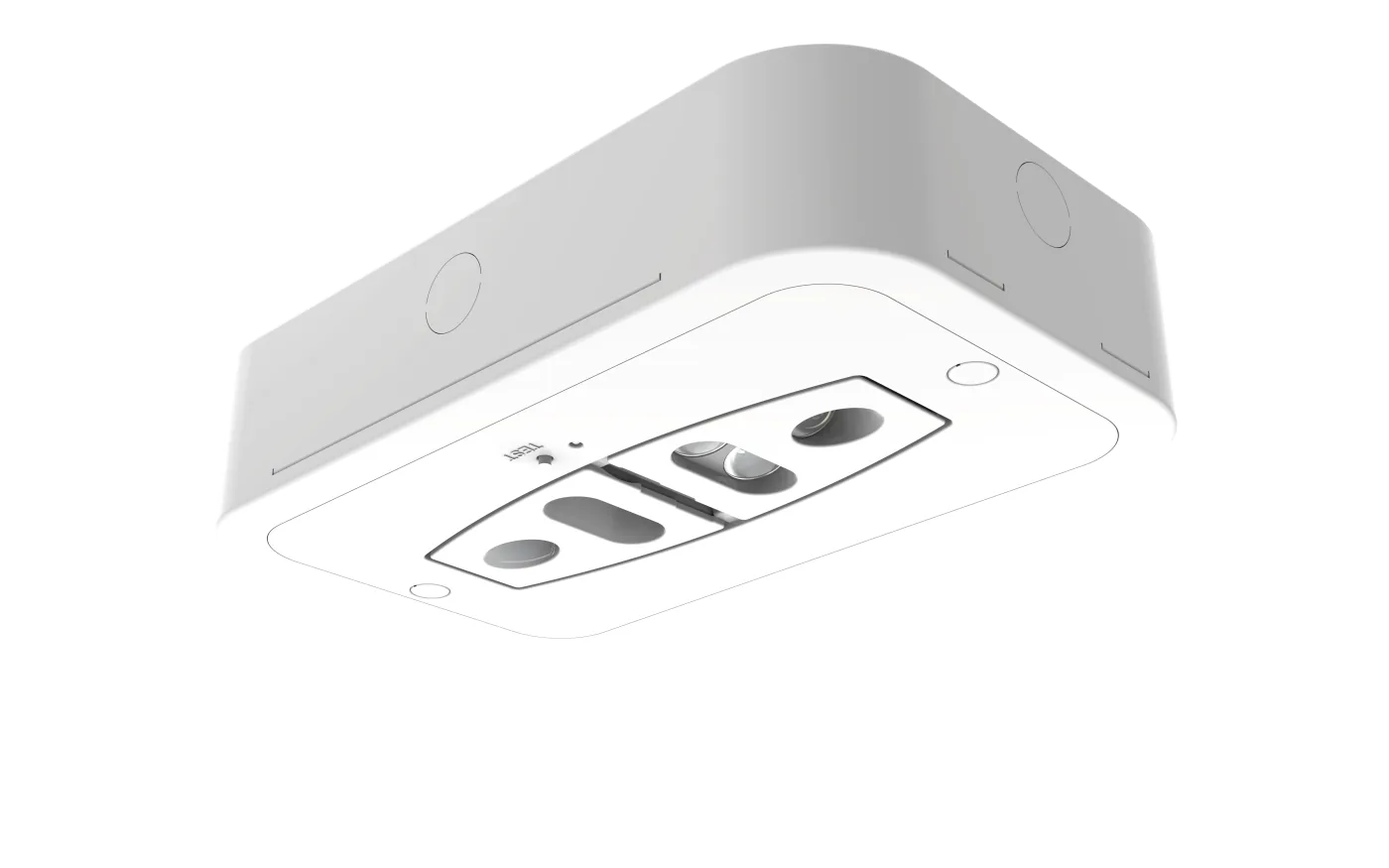

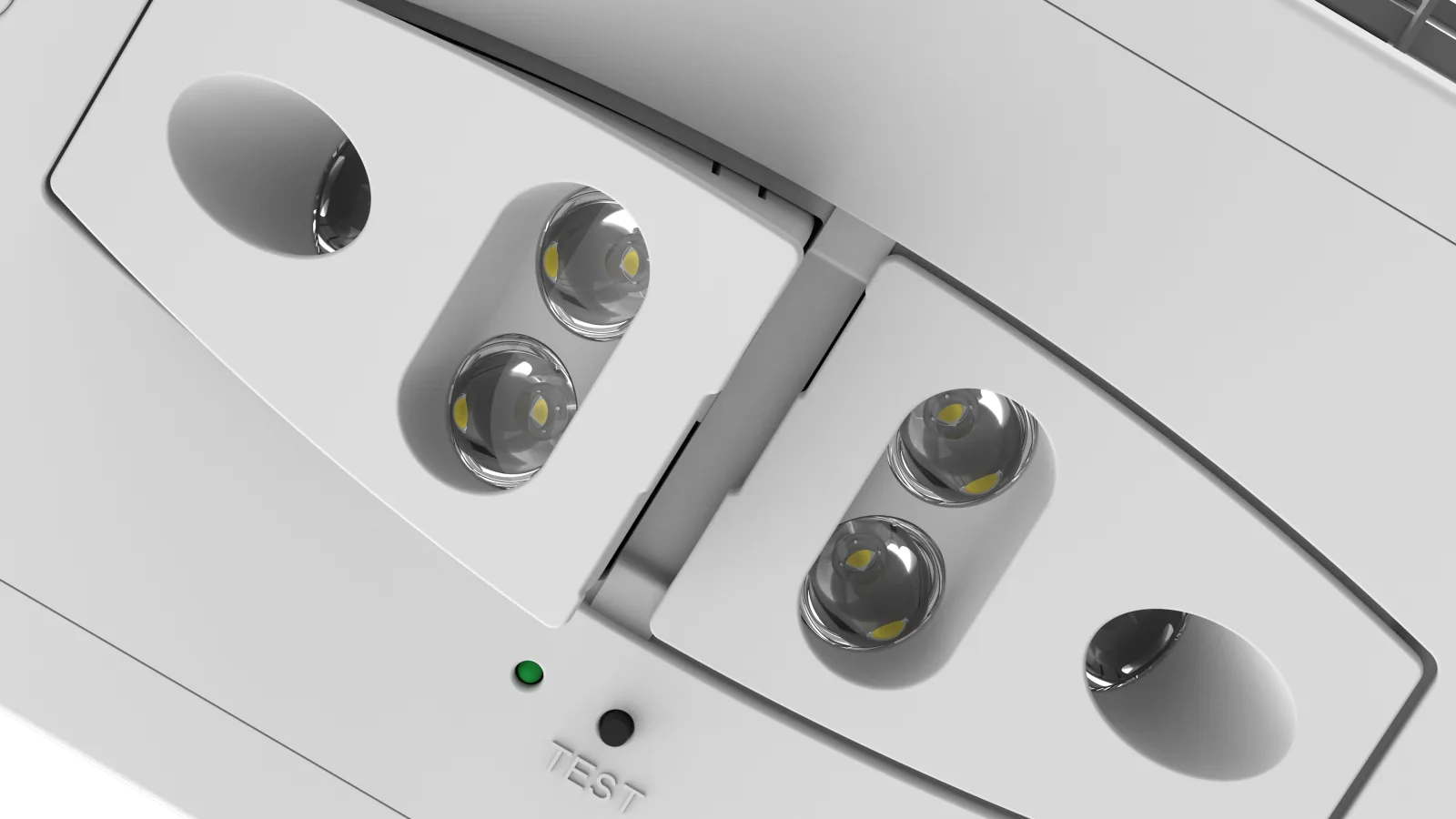

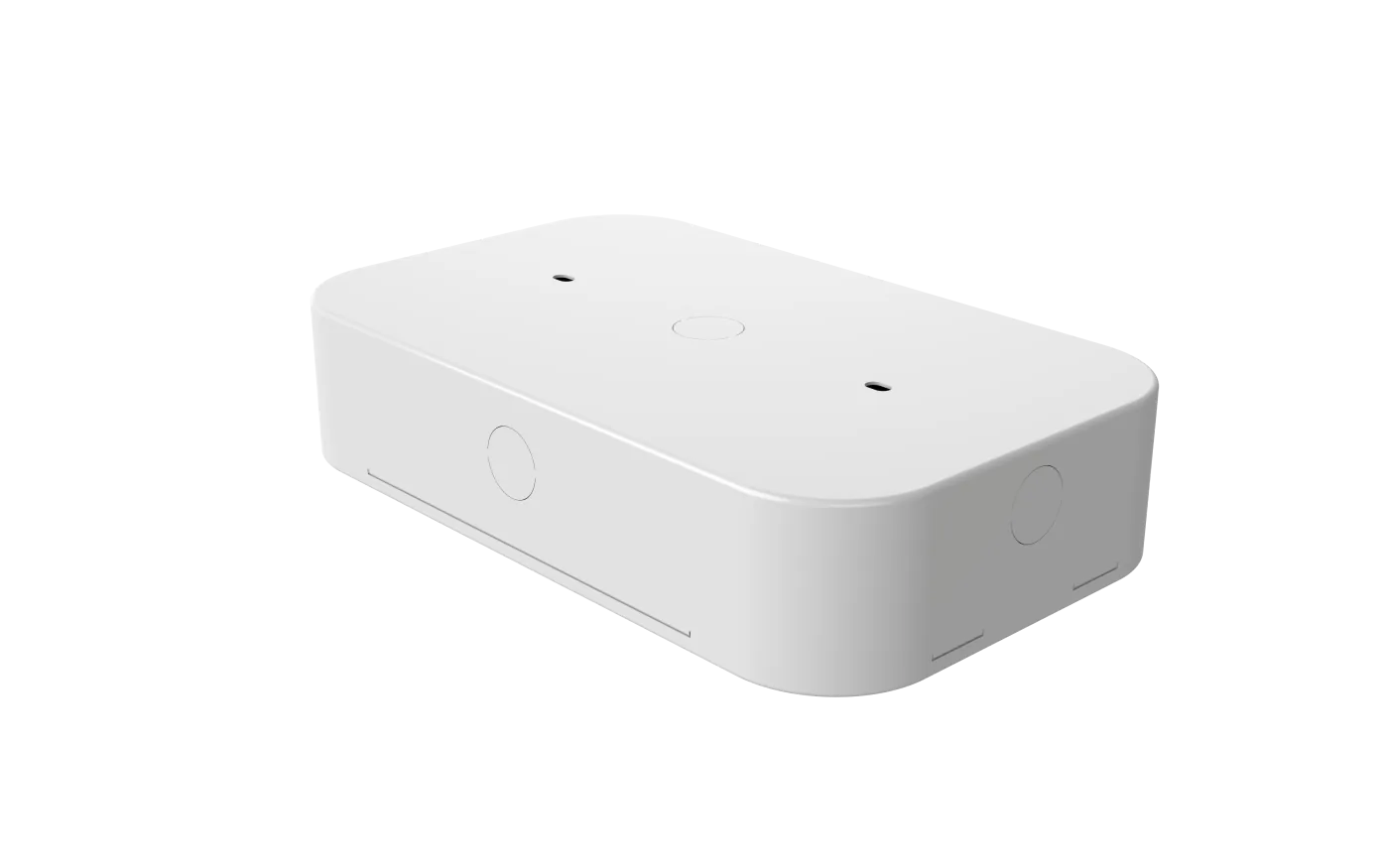

Surface-mounted luminaire for escape routes. The light output can be aligned to 90° or 180° to suit corridors and open areas. The two-part housing makes installation easier.
Technical data
| Luminous flux (emergency) | 1.200 lm |
|---|---|

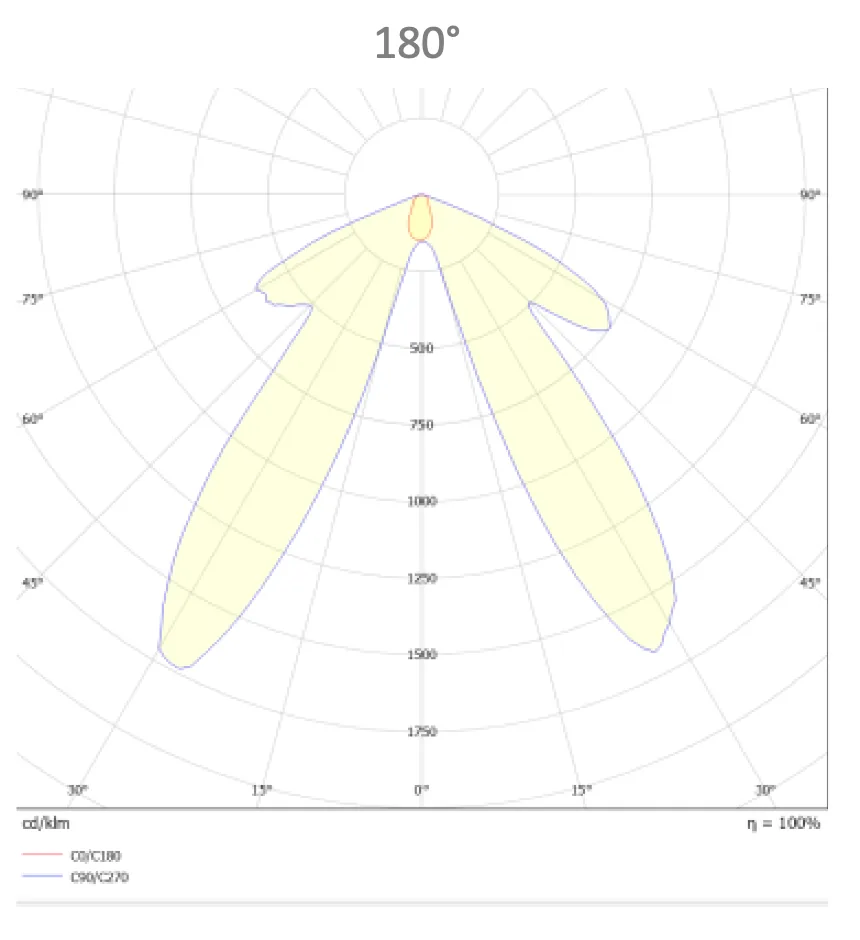

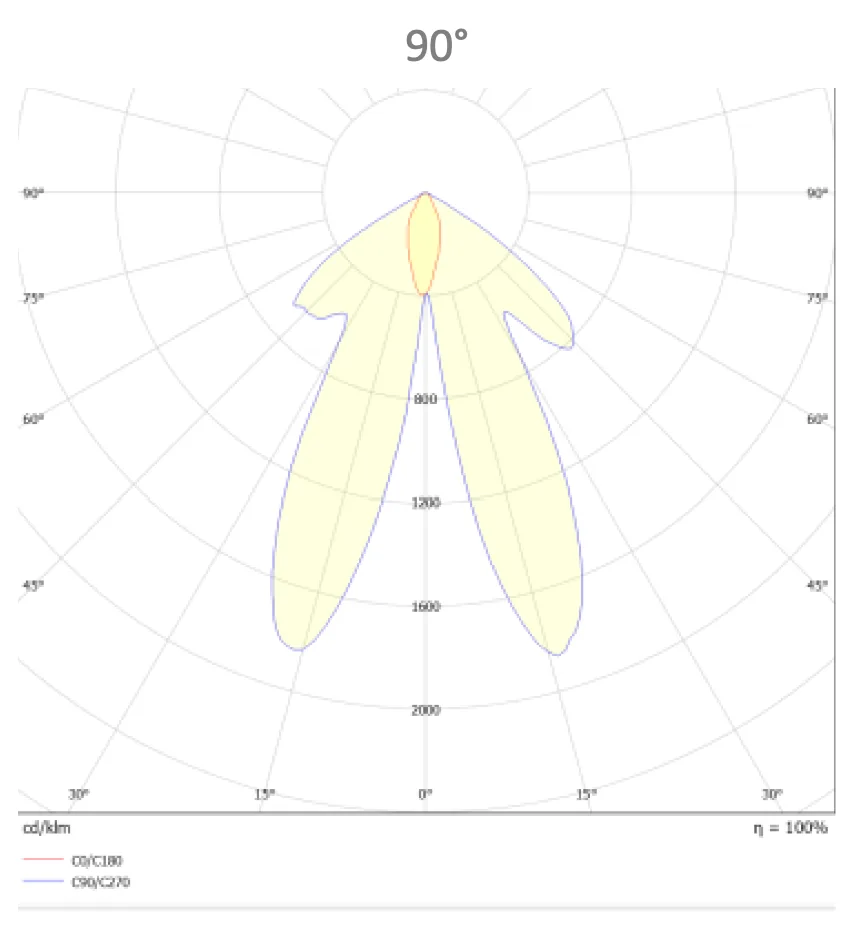

| Beam angle | 90° or 180° (adjustable) |
| Emergency operation | up to 3 hours |
| Power / efficacy | 6 W · 165 lm/W |
| Colour temperature | 5.000 K |
| Dimensions (H × W × D) | 73 × 155 × 255 mm |
| Protection rating | IP20 |
| Battery | LiFePO4, integrated, replaceable |
| Testing | Self-test to EN 50172 / EN 62034, Bluetooth + app |
Images similar. Subject to technical changes.
Specification texts
LED escape route safety luminaire, surface-mounted, self-contained with self-test Supply and install: Surface-mounted luminaire for escape routes, light output adjustable to 90° or 180°. - Luminous flux (emergency): 1.200 lm - Beam angle: 90° or 180° (adjustable) - Emergency operation: up to 3 hours - Power / efficacy: 6 W · 165 lm/W - Colour temperature: 5.000 K - Dimensions (H × W × D): 73 × 155 × 255 mm - Protection rating: IP20 - Battery: LiFePO4, integrated, replaceable - Testing: Self-test to EN 50172 / EN 62034, Bluetooth + app - LED lifetime 100,000 h (L85B05 at 35 °C) Make: NOTLUX by TRiALED, type TRN-19-WGB01-3H-BT or equivalent Offered make / type: ............................ Quantity: ...... pcs Unit price: ............ € Total: ............ €
