Exit sign luminaire. The way out.
TRN-19-FLW01-3H-BT

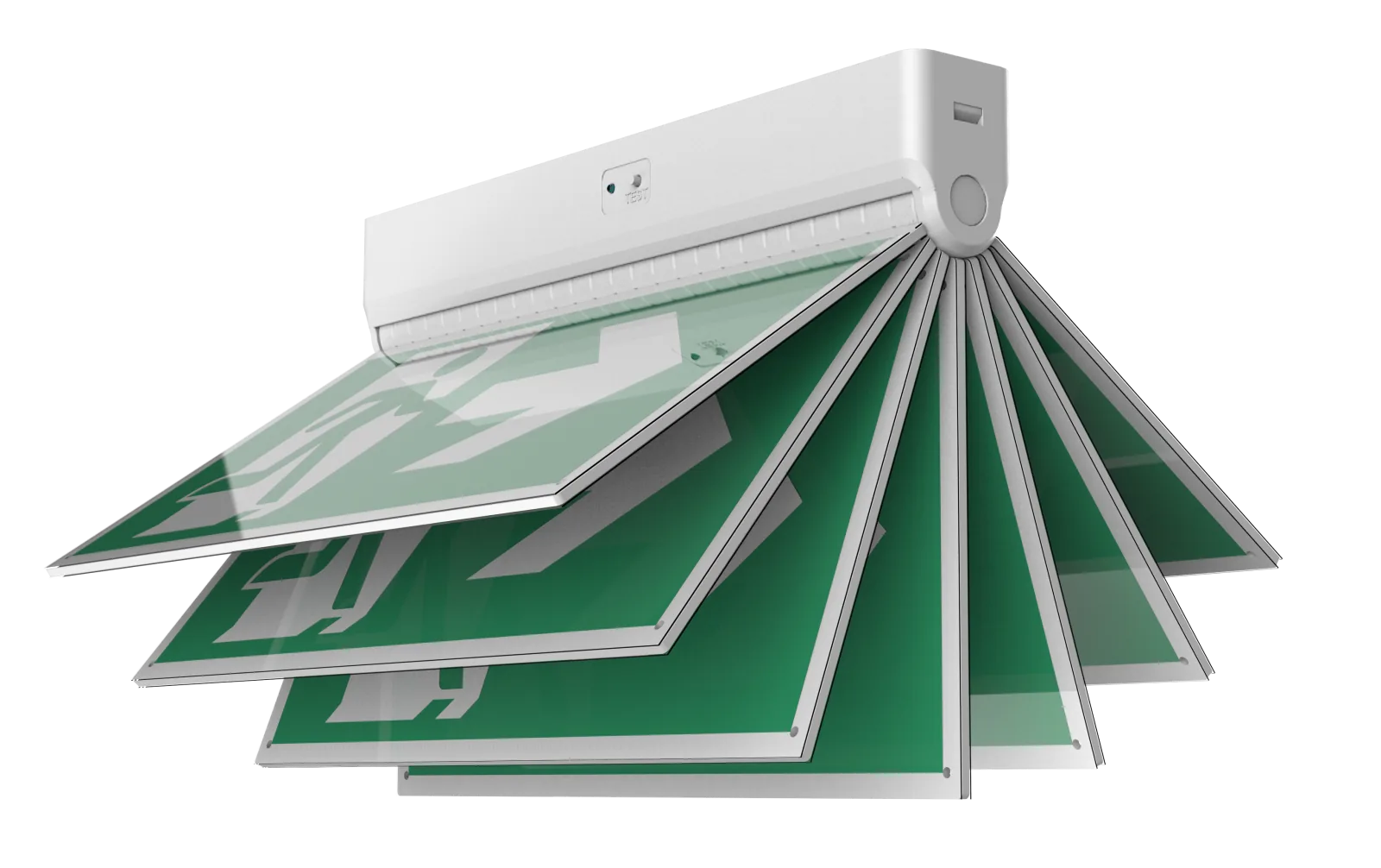

Discreet LED exit sign luminaire for ceiling and wall. Up to 30 metres viewing distance and an integrated battery for up to three hours of emergency operation – without additional emergency power components. The pictogram film is replaceable, the luminaire stays.
Technical data
| Viewing distance | 30 m |
|---|---|
| Emergency operation | up to 3 hours |
| Power | 1 W |
| Colour temperature | 6.000 K |
| Dimensions (H × W × D) | 327 × 228 × 46 mm |
| Protection rating | IP20 |

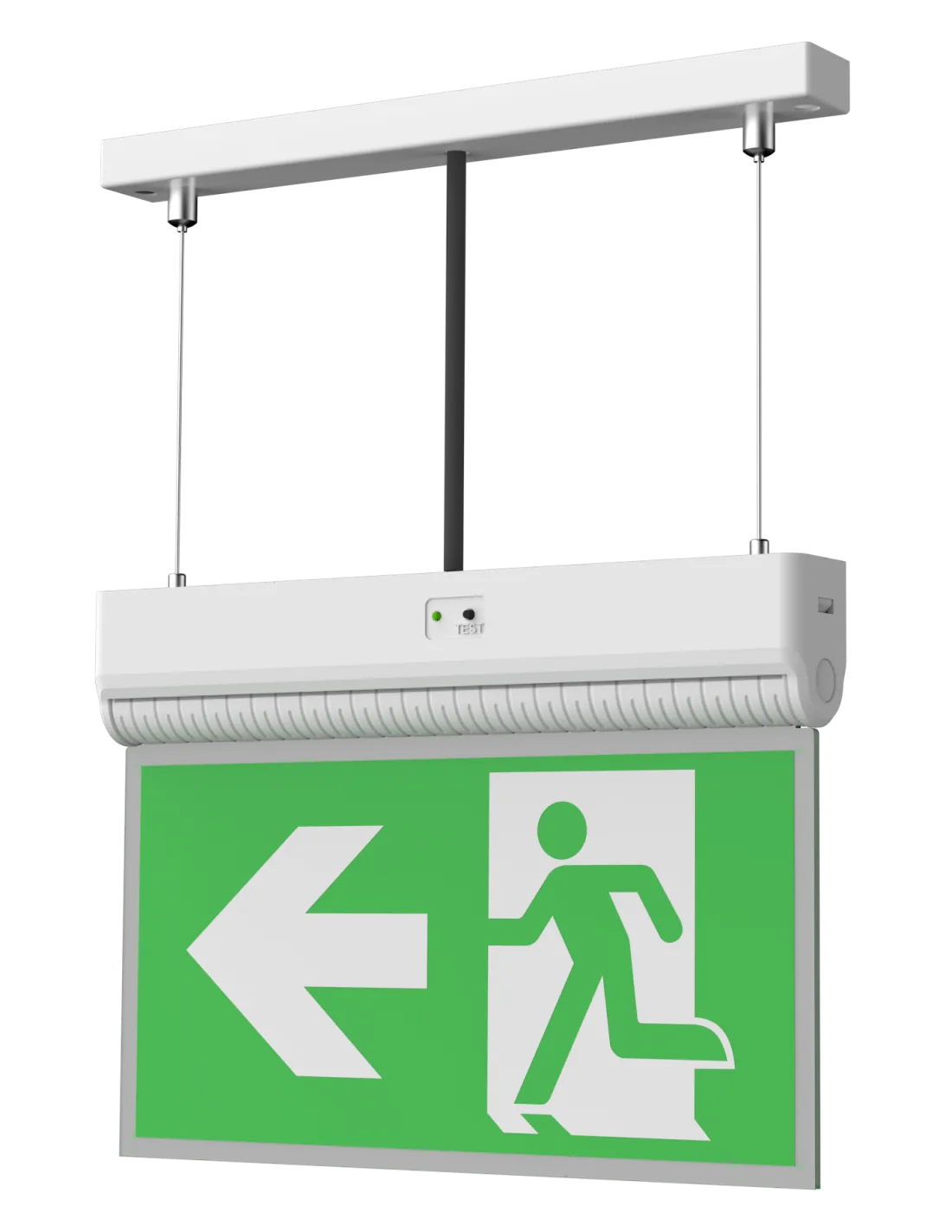

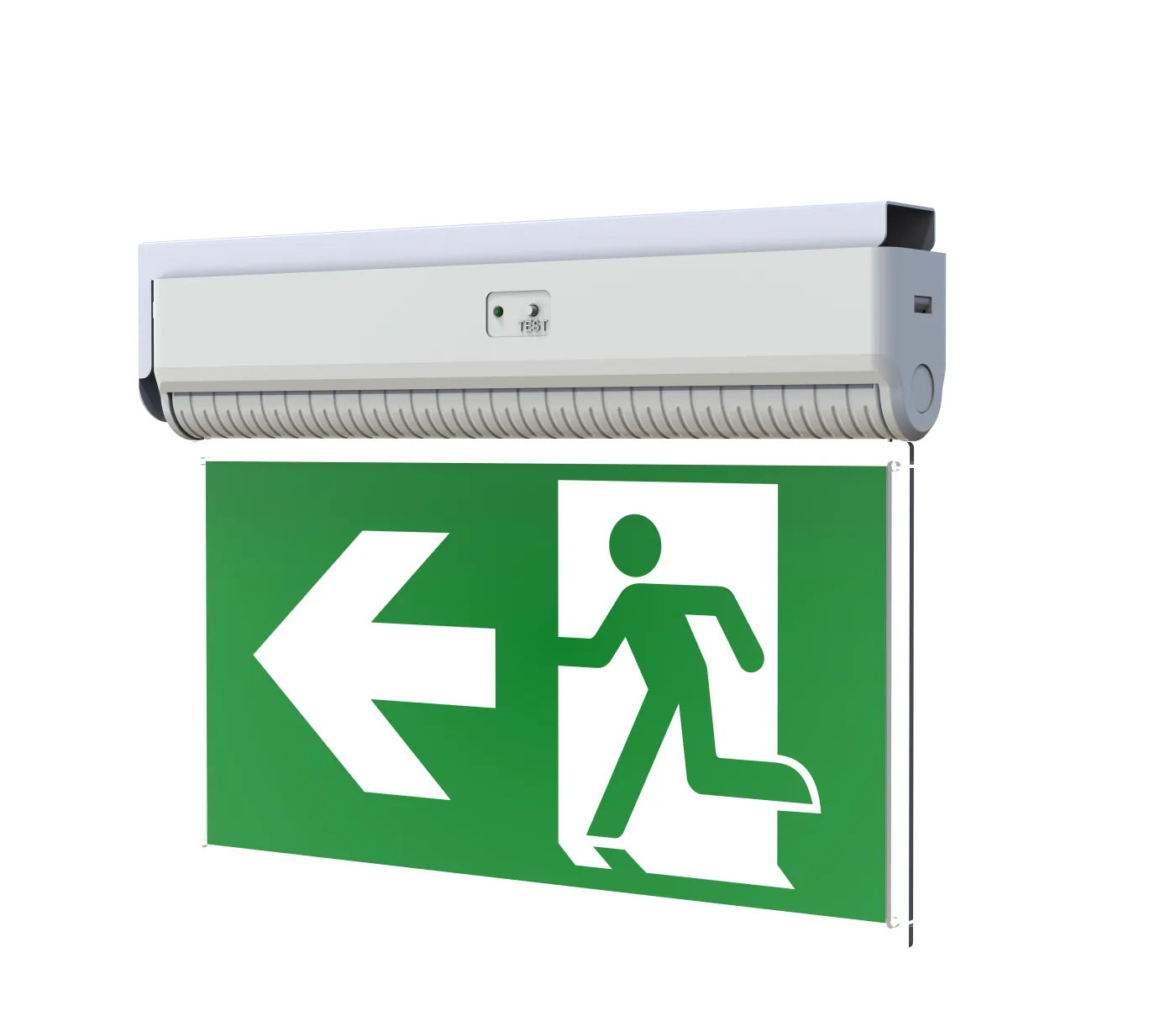

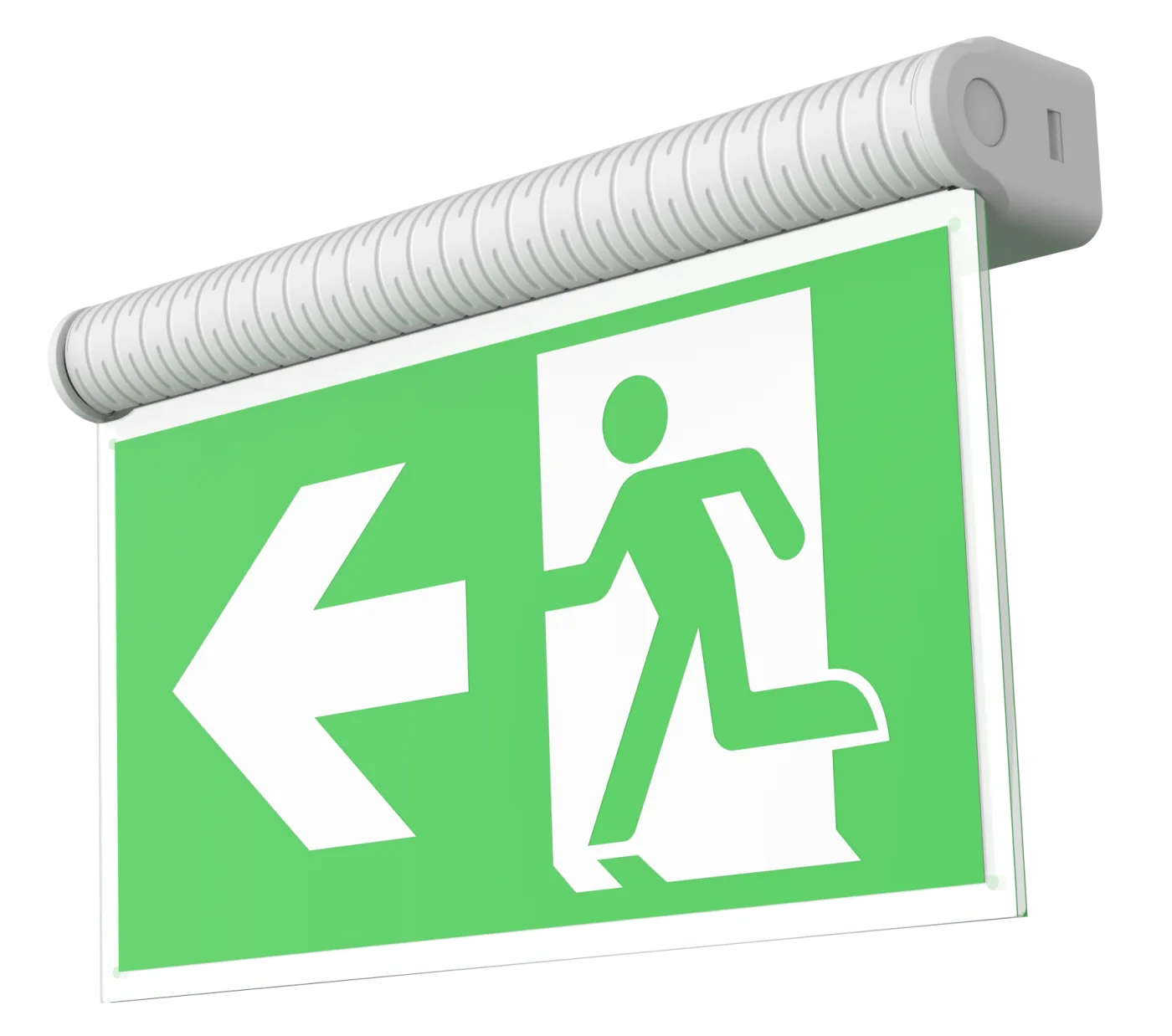

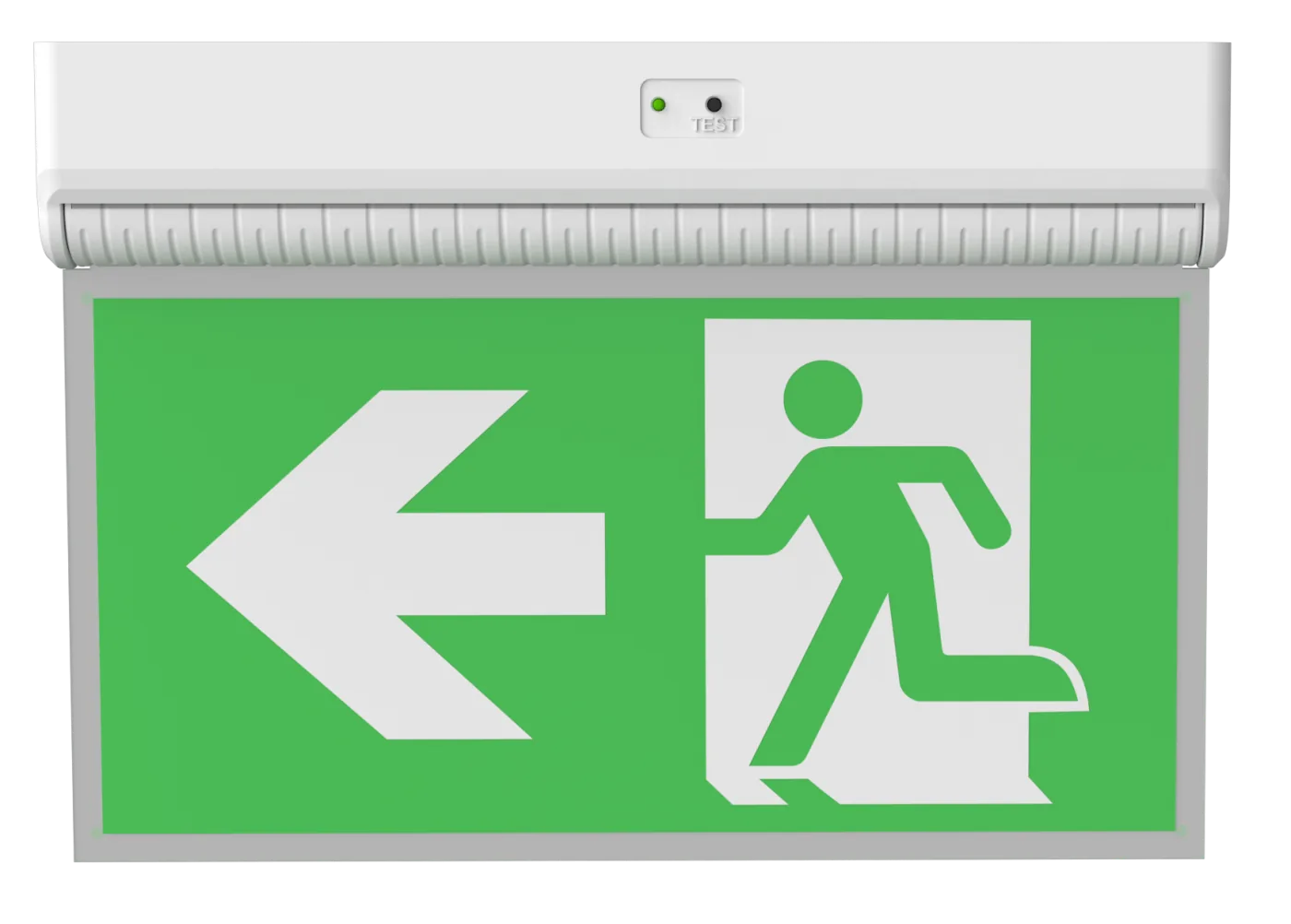

| Mounting | Ceiling, wall, side, pendant |
| Battery | LiFePO4, integrated, replaceable |
| Testing | Self-test to EN 50172 / EN 62034, Bluetooth + app |
Images similar. Subject to technical changes.
Specification texts
LED exit sign luminaire, self-contained with self-test Supply and install: Discreet LED exit sign luminaire for ceiling, wall, side or pendant mounting – up to 30 m viewing distance. - Viewing distance: 30 m - Emergency operation: up to 3 hours - Power: 1 W - Colour temperature: 6.000 K - Dimensions (H × W × D): 327 × 228 × 46 mm - Protection rating: IP20 - Mounting: Ceiling, wall, side, pendant - Battery: LiFePO4, integrated, replaceable - Testing: Self-test to EN 50172 / EN 62034, Bluetooth + app - Pictogram to ISO 7010, replaceable pictogram film - LED lifetime 100,000 h (L85B05 at 35 °C) Make: NOTLUX by TRiALED, type TRN-19-FLW01-3H-BT or equivalent Offered make / type: ............................ Quantity: ...... pcs Unit price: ............ € Total: ............ €
