Drag with mouse or finger, zoom by scrolling or pinching. Simplified 3D model – details may differ from the delivered version.

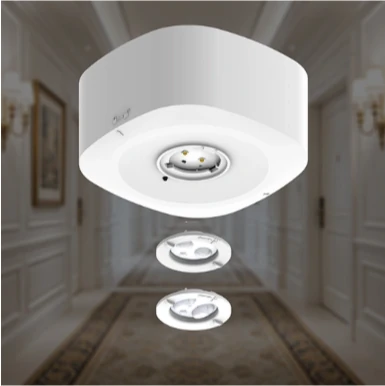

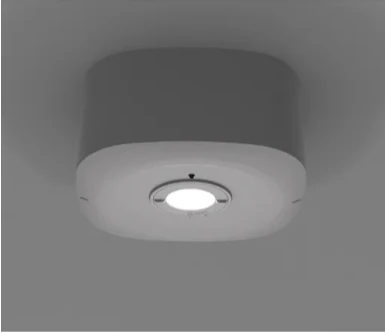

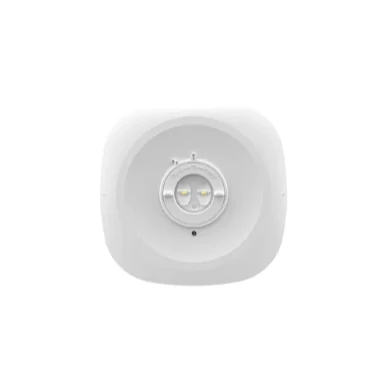

Compact emergency light. Recessed or surface-mounted.
TRN-19-LD02AB-LFP-BT-3H

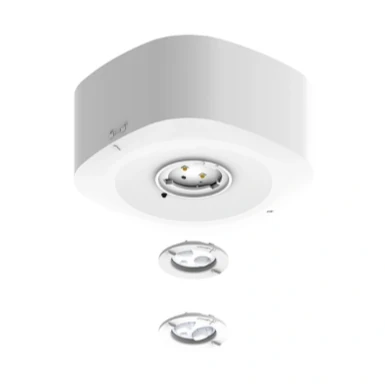

Compact luminaire for escape routes that can be recessed into or mounted onto the ceiling. Interchangeable optics with 135 × 55° or 140° adapt it to escape routes and open areas.
Technical data
| Luminous flux (emergency) | 700 lm |
|---|---|
| Optics | 135 × 55° (escape route) or 140° (open area) |
| Emergency operation | up to 3 hours |
| Power | 6 W |
| Colour temperature | 5.000 K |
| Dimensions (H × W × D) | 69 × 140 × 140 mm |
| Protection rating | IP20 |
| Battery | LiFePO4, integrated, replaceable |
Images similar. Subject to technical changes.
Specification texts
Compact LED safety luminaire, recessed or surface-mounted, self-contained Supply and install: Compact emergency light for escape routes, recessed or surface-mounted, with interchangeable optics. - Luminous flux (emergency): 700 lm - Optics: 135 × 55° (escape route) or 140° (open area) - Emergency operation: up to 3 hours - Power: 6 W - Colour temperature: 5.000 K - Dimensions (H × W × D): 69 × 140 × 140 mm - Protection rating: IP20 - Battery: LiFePO4, integrated, replaceable - LED lifetime 100,000 h (L85B05 at 35 °C) Make: NOTLUX by TRiALED, type TRN-19-LD02AB-LFP-BT-3H or equivalent Offered make / type: ............................ Quantity: ...... pcs Unit price: ............ € Total: ............ €
